Forwarders and stub zones

DTM is authoritative for the zones you create on it. For everything else, it can forward queries to other resolvers. Three mechanisms decide where a non-authoritative query goes. End to end, a query walks this pipeline:

Default forwarder

The default forwarder is where DTM sends any query that does not match one of its zones or a conditional forwarder. On Azure this is typically the platform-provided resolver.

{ "upstreams": ["168.63.129.16"], "enabled": true }

If you disable the default forwarder, DTM answers non-matching queries with REFUSED instead of forwarding them, so it only ever resolves names you have explicitly configured. This is a deliberate lock-down option.

Conditional forwarders

A conditional forwarder sends queries for one specific domain to specific upstream resolvers. Use it to reach namespaces that another DNS server owns, for example an Active Directory domain or a partner’s internal zone. (Running alongside Azure DNS Private Resolver? The coexistence patterns show which direction to forward in each setup.)

{
  "domain": "corp.contoso.com.",
  "upstreams": ["10.0.0.1:53"],
  "comment": "AD DNS"
}

Conditional forwarders take precedence over the default forwarder for their domain.

Tip

Running alongside Active Directory? The AD coexistence guide shows the full wiring: the AD domain and _msdcs forwarded to your domain controllers, DTM authoritative for the traffic-managed zones.

Stub zones

A stub zone is a lightweight delegation: you give DTM a set of bootstrap nameservers (“hints”) for a domain, and DTM keeps the domain’s NS list fresh from them and forwards queries accordingly. Use a stub zone when you want DTM to track the authoritative nameservers for a delegated domain rather than pin a fixed set of upstream IPs.

{
  "domain": "partner.local.",
  "hints": ["10.5.0.1:53"],
  "comment": "Partner DNS"
}

A domain is owned by at most one entry across both mechanisms: creating a second conditional forwarder or stub zone for a domain that already has one (of either kind) is rejected with a conflict error.

Blocklist

The blocklist is a suffix-matched denylist. Any query whose name matches an entry (or a subdomain of it) is answered with NXDOMAIN. Use it to sink known tracking or malware domains at the DNS layer.

{ "domains": ["doubleclick.net", "trackers.example"] }

Encrypted upstreams: DoT and DoH (optional)

This section is about DTM’s outbound path: forwarders talking to their upstreams. DTM can also serve DoT and DoH to your own clients; that is configured separately, see DNS over TLS and HTTPS.

Any forwarder (default, conditional, or stub zone) can reach its upstreams over an encrypted transport. Set these fields on the forwarder itself; one transport applies to all of that forwarder’s upstreams:

Field	Meaning
transport	udp (default, with TCP retry), tcp, dot (DNS over TLS), or doh (DNS over HTTPS). Default ports: 853 for DoT, 443 for DoH, 53 otherwise.
tls_server_name	Name used for SNI and certificate verification (upstreams stay IP literals).
ca_pem	PEM CA or leaf pin for the upstream’s certificate.
tls_skip_verify	Encrypt without verifying the certificate. Logged as a warning; a ca_pem pin, if also set, wins.
doh_path	DoH endpoint path, default /dns-query.

An encrypted transport requires at least one of tls_server_name, ca_pem, or tls_skip_verify, and it never falls back to plaintext: a failed encrypted exchange fails over to the next upstream instead. Note that Azure’s platform resolver (168.63.129.16) does not offer DoT or DoH, so encrypted transport is mainly useful on conditional forwarders and stub zones pointing at resolvers you control.

Health-aware upstream failover (optional)

Set health_check: true on a forwarder (default, conditional, or stub zone) and DTM actively probes its upstreams and tries healthy ones first. Probes run over the forwarder’s configured transport every 10 seconds with a 2 second timeout; two consecutive failures mark an upstream unhealthy, one success brings it back. Classification is reachability, not correctness: any well-formed DNS response counts as healthy, only timeouts, refused connections, and malformed responses count against an upstream.

Ordering preserves your configured order within each group (healthy first, unhealthy moved to the back), and if every upstream is unhealthy DTM still tries them all in your original order, so a probe outage never causes an early failure. Upstream health is judged per node and never replicated: each node fails over based on its own reachability. The status surfaces are the Prometheus metric dtm_forwarder_upstream_healthy (labelled by upstream and scope; see observability) and the per-upstream verdicts from the UI’s Test button, below.

Test a forwarder’s upstreams

Each conditional forwarder and stub zone in the web UI has a Test button (admin role). It queries the configured upstreams directly, over the configured transport, bypassing the cache and the resolution pipeline, so the result is attributable to the forwarder under test rather than to some other pipeline stage. Each upstream gets its own interpreted verdict, which makes the one dead upstream in a list obvious:

• A bare NXDOMAIN reads as “the upstream answered, but has no record for this name”, not a failure.
• NODATA, REFUSED, and SERVFAIL each get their own plain-language verdict.
• Only a transport failure reads as “could not reach the upstream”.

Stub zones are tested against their live nameserver list (the configured hints are shown for comparison), falling back to the hints only when no refresh has ever populated the live list.

Forwarder hardening (optional)

For deployments that forward to the internet, you can constrain the default forwarder with an optional allowlist of domain suffixes it will forward, and a per-client query-rate cap. Leave the allowlist empty to forward everything. See the cluster and runtime config Terraform page or the API reference.

Managing forwarding

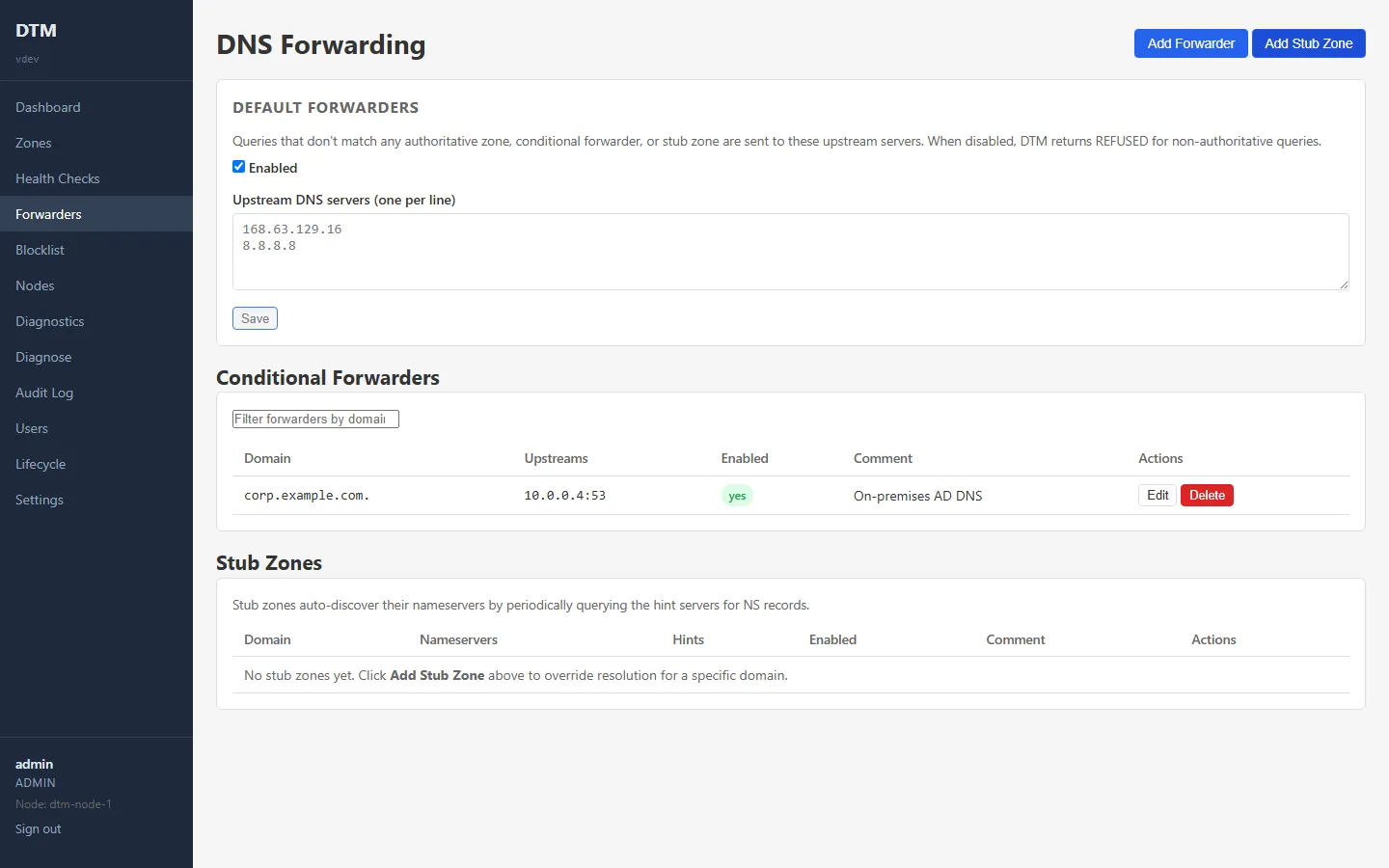

• Web UI: the DNS settings pages cover forwarders, stub zones, and the blocklist.

• REST API: /api/v1/forwarders, /api/v1/stub-zones, /api/v1/blocklist, and /api/v1/forwarders/default.
• Terraform: dtm_forwarder, dtm_stub_zone, dtm_blocklist, and dtm_default_forwarder.
